Non Magnetic SS Downhole Slotted Tube , Johnson Wedge Wire Screens

Name: Non Magnetic SS Downhole Slotted Tube Johnson Wedge Wire Screens
Brand: HengYuan
Price: 1 USD

Buy cheap Non Magnetic SS Downhole Slotted Tube , Johnson Wedge Wire Screens product

Brand Name : HengYuan

Model Number : 6-5/8 inch

Certification : ISO, CIQ, SGS, CE

Place of Origin : Anping, Hebei, China

MOQ : 1 pieces

Price : negotiated price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1500 pcs /month

Delivery Time : 7 days

Packaging Details : wooden boxes,container

Name : Wedge Wire Screen Mesh

Material : Stainless steel

Length : 10FT, Upto 6 meters

Diameter : 29-1200mm

Technique : Full welded

Features : Non-clogging

Application : Filteration

Package : Wooden boxes,container

End connection : Welded rings Or Male/female threaded

Contact Now

High Effective Johnson Wedge Wire Screens Non Downhole Slotted Tube Magnetic Stainless Steel Material

Non-magnetic Stainless steel wedge wire screens by HengYuan has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen.

Non-magnetic Stainless steel wedge wire screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.

Specifications of non-magnetic stainless steel wedge wire screens:

Slot size (mm): 0.25, 0.5, 1.0, 1.5, 2.0mm, or other slot as your request.
Open area: up to 60%
Material: Non-magnetic stainless steel
Lengths up to 6 meters for container
Diameter: ranging from 25 to 800mm
End connection: threaded coupling or welded ends
Slot (mm): 0.50, 0.75, 1.00, 1.50, 2.00, 3.00 and so on.

Specification (wedge wire):	Width(mm): 2.0, 2.2, 3.0, 3.2 Height(mm): 3.5, 4.6, 5.0, 6.0, 7.0
Specification (support rod):	Round: From 3.0mm to 5.0mm
Note: other specifications available as per request
Slot size	0.5, 0.75, 1.0, 1.5mm.. 100mm also achieved upon request.
Material:	Non-magnetic Stainless steel
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.
End connection	Plain beveled ends, flanged or threaded couplings

Non Magnetic SS Downhole Slotted Tube , Johnson Wedge Wire Screens

Product Tags:

johnson wedge wire screens

johnson stainless steel screen

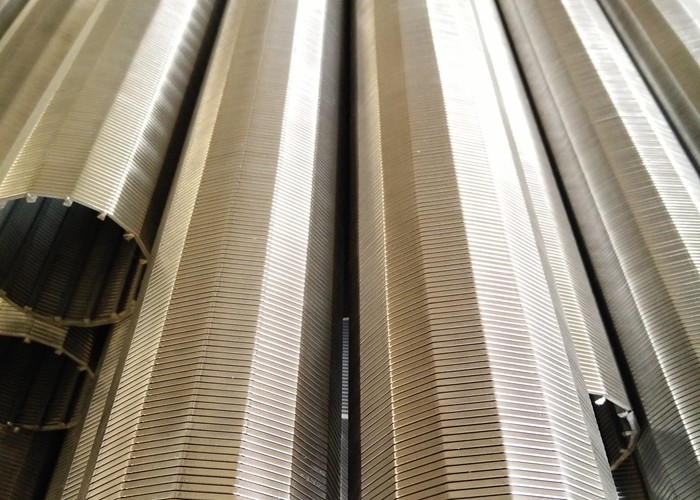

Non Magnetic SS Downhole Slotted Tube , Johnson Wedge Wire Screens Images
